Customizable Compact Small Kiosk Industrial Keyboard With Optical Trackball

Categories Industrial Keyboard With Trackball
Place of Origin: China
Brand Name: KINGLEADER
Model Number: MKB-66A-TB-M
Certification: CE,FCC,ROHS
MOQ: 1pcs
Price: US$
Packaging Details: 1pcs/box, 10pcs/ctns
Delivery Time: 20days
Payment Terms: T/T,Paypal
Supply Ability: 2000pcs/month
Material of Front Panel: Brushed stainless steel
Keypad Button Material: Stainless steel
Number of Keys: 66 MINI
Mounting Method: Panel mounting(from behind)
Sealing Protection Level: IP65
Interface: USB,PS/2 or USB+PS/2
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Customizable Compact Small Kiosk Industrial Keyboard With Optical Trackball

Customizable Compact Small Kiosk Industrial Keyboard With Optical Trackball


MKB-66A-TB-M

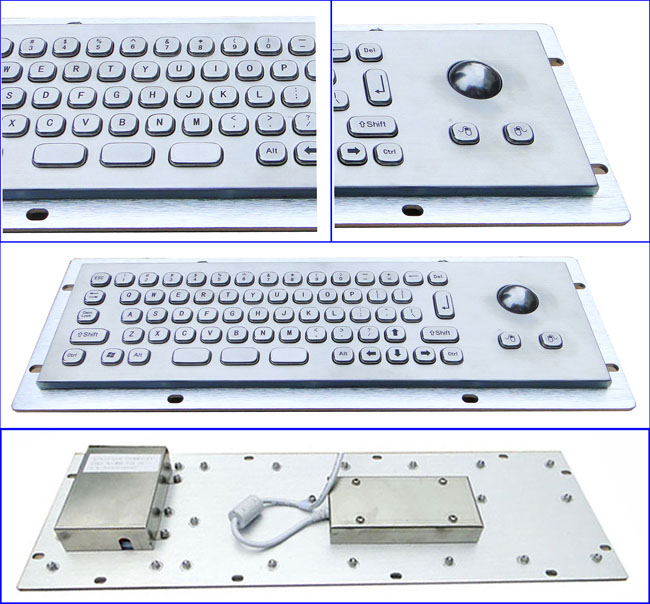

Rugged stainless steel, water-proof, vandal-proof compact size keyboard with 66 customizable, full travel keys( 3 spacebar keys) and integrated optical trackball

Key Features:

1) 66 keys(3 spacebar keys), compact size with integrated optical trackball, panel mount
2) Protruding full travel(2.0mm)keys with etched or laser engraved graphics, excellent tactile feel;
3) Specially designed to operate in harsh environments, making them ideal for kiosks and other applications in public places.
4) Built from stainless steel, high vandal-proof.
5) Dust-proof and liquid-proof, meet IP65 requirement
6) PS/2 or USB interface, easy to plug into computers directly
7) Customizable


Specifications


Material

Front panel & Keys: Brushed stainless steel

Back panel: Aluminum alloy

Key cap: Protruding full travel key (2.0mm) with etched graphics

Trackball: Stainless steel trackball (Dia: 25mm)


Electrical Data

Power supply voltage: DC 5 V 5%

Current rating: 20 mA

Interface: USB or PS2

EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1

FCC: Part 15, class B

Safety: EN 60950, CE compliant


Environmental Characteristics

Operating temperature: -20 C to + 60 C

Storage temperature: - 40 C to + 80 C

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40 C: 21 days, IEC 60512-6

Dry heat test at + 85 C: 10 days, IEC 60512-6


Mechanical Data

Actuation force for key: 120±15g

Key travel: 2.0mm

Lifetime (cycles): Min 5, 000, 000 actuations

Sealing protection: IP65/NEMA4X from the front

Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4

Shock resistance: 3 axis 150 m/s - 11 ms, IEC 60512-4

Operation system

PS2: Win NT4, 98SE, 98ME, 2000, XP

USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX


Weight and Dimension

Weight: 1.80kg

Dimension:

Front panel: 293.0x87.0 mm
Back panel: 317.0x111.0 mm

Thickness: 33.6 mm (to where the tallest component is)
